Huawei SFP-GE-LX-SM1310 Optical Transceiver GE eSFP Singlemode Module 1310nm

Ms. Sammi

Job Title : Manager Business Phone : 86-13538247228 WHATSAPP: 86-13538247228 Skype : bonet-cisco WeChat : 13538247228 Email :ciscosales@bo-net.com

Product Details :
Payment & Shipping Terms :

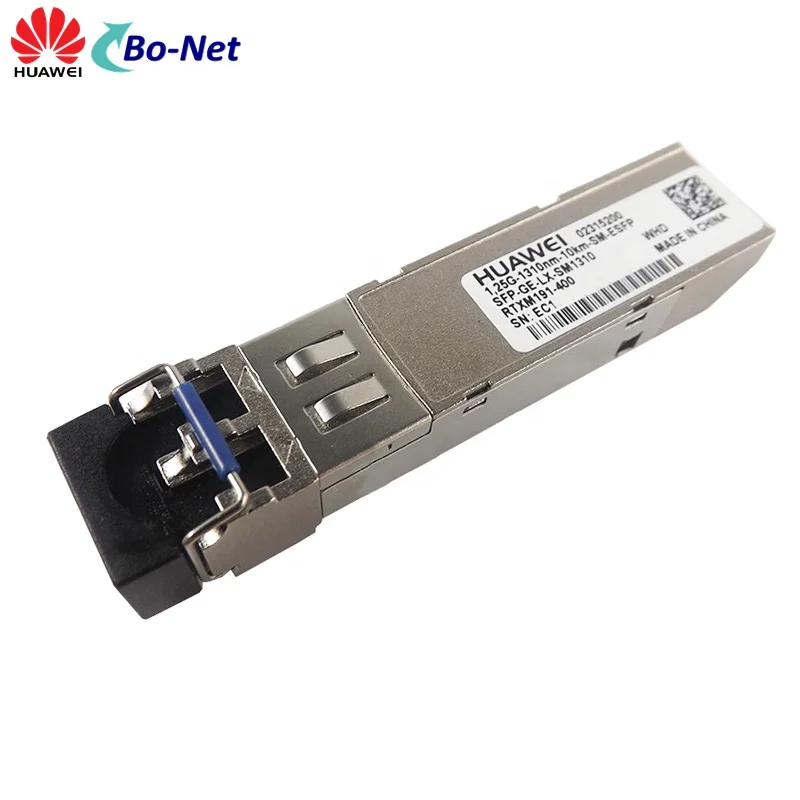

Huawei SFP-GE-LX-SM1310 1000BASE-LX10 Optical Transceiver GE eSFP Single-mode Module 1310nm 10km LC
Huawei SFP-GE-LX-SM1310 Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
Part number
02315200
Version support
Supported in V100R001C00 and later versions
Transceiver form factor
eSFP
Transmission speed
GE
Center wavelength (nm)
1310
Standards compliance
1000BASE-LX10
Connector type
LC
Applicable cable and maximum transmission distance
* Multimode fiber (OM1) (with diameter of 62.5 μm): 550 m

* Multimode fiber (with diameter of 50 μm): 550 m

* Multimode fiber (OM2) (with diameter of 50 μm): 550 m

* Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Modal bandwidth
* Multimode fiber (OM1): 200/500 MHz*km

* Multimode fiber: 400/400 MHz*km

* Multimode fiber (OM2): 500/500 MHz*km

* Single-mode fiber (G.652): -
Transmit power (dBm)
-9 to -3
Maximum receiver sensitivity (dBm)
-20
Overload power (dBm)
-3
Extinction ratio (dB)
≥ 9
Operating temperature
0°C to 70°C
